Photovoltaic Frame Polyurethane Extrusion Production Line Corrosion Resistant

Photovoltaic Frame Polyurethane Extrusion Production Line Corrosion Resistant

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM,PLASTIC FILM,PACKAGE,WOODEN CASE PACKAGE FOR KEY PARTS
Delivery Period: different conditions different data
Payment Method: L/C, T/T
Supply Capacity: 200sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
Hydrauli type/Caterpillar type
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM,PLASTIC FILM,PACKAGE,WOODEN CASE PACKAGE FOR KEY PARTS
Delivery Time:
different conditions different data
Payment Terms:
L/C, T/T
Supply Ability:
200sets per year
Highlight:

Polyurethane Extrusion Production Line

,

Photovoltaic Frame Extrusion Production Line

,

Plastic Sheet Extrusion Line Corrosion Resistant

Product Description

The main production method of composite photovoltaic frames is two-component polyurethane+glass fiber extrusion molding. Pultrusion molding refers to the process of producing composite profiles by heating continuous fibers or their fabrics impregnated with resin through molds under the action of traction equipment. It has the advantages of controllable fiber content, high raw material utilization rate, and high production efficiency.

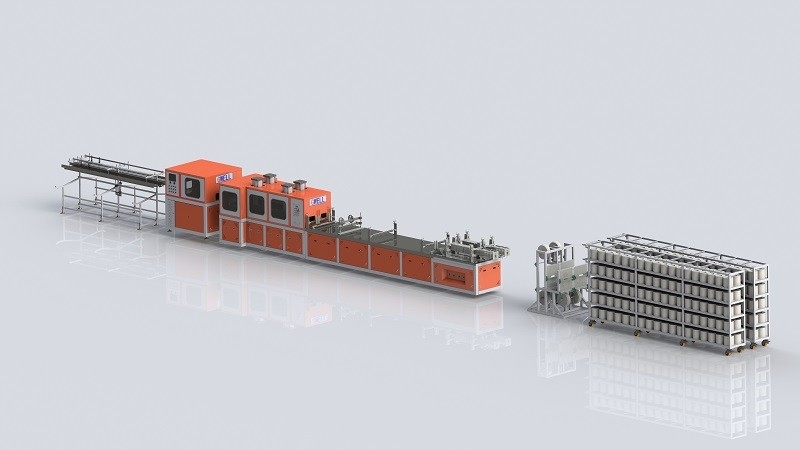

The core equipment for polyurethane composite material extrusion molding includes extrusion equipment, glue injection machine, and frame mold. The conventional pultrusion production line consists of a yarn frame, a soaking tank, a shaping mold, a traction device, and a cutting device. The pultrusion products have advantages such as lightweight, high strength, and corrosion resistance, and are widely used in new energy, medical, communication, and power transmission fields such as construction, transportation, wind power, and photovoltaics.

Compared to traditional aluminum and metal photovoltaic frames, polyurethane photovoltaic frames have the following advantages:

1. Polyurethane composite materials have excellent mechanical properties, and their axial tensile strength reaches more than 7 times that of traditional aluminum alloy materials.

2. It has strong resistance to salt spray and chemical corrosion.

3. Having a high volume resistivity, the photovoltaic modules are packaged with polyurethane frames, greatly reducing the possibility of forming leakage circuits and helping to reduce the occurrence of PID potential attenuation. Improved the power generation efficiency of the battery panel.

4. Polyurethane frames can also be used in conjunction with water-based polyurethane coatings, greatly increasing the weather resistance of the frames and having extremely low VOC emissions.


Photovoltaic Frame Polyurethane Extrusion Production Line Corrosion Resistant 0Photovoltaic Frame Polyurethane Extrusion Production Line Corrosion Resistant 1Photovoltaic Frame Polyurethane Extrusion Production Line Corrosion Resistant 2
