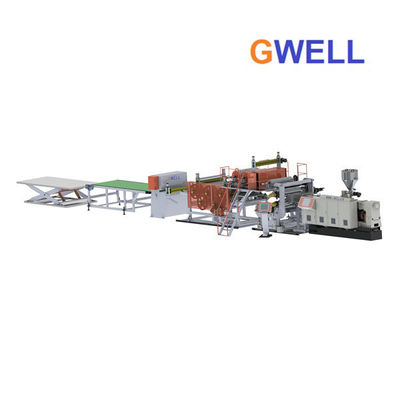

SPC Flooring making machine Flooring Production Line 750kg H

SPC Flooring making machine Flooring Production Line 750kg H

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90-100 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWC92/188 GWC80/156
Product Name:
SPC Flooring Making Machine Flooring Production Line 750kg H
Machine Type:
Composite Plastic Floor Extrusion Line
Brand:
GWELL
Suitable Material:
SPC+calcium Carbonate
Width:
1000mm
Thickness:
2-5mm
Screw Design:
Conical Twin Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90-100 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets per year
High Light:

SPC flooring sheet extrusion line 750kg h

,

SPC flooring production line 750kg h

,

SPC Tile Mixing Machine 750kg h

Product Description

SPC Plastic Floor Production Line Provide Installation And Commissioning



1. SPC floor making machine is a new environment-friendly composite material product with the following advantages

(1) Waterproof and moisture-proof. The basic solution to the moisture and water absorption of wood products in the environment is easy to rot, expansion and deformation, and it can be used in the environment in which traditional wood products can not be used.

(2) Anti-insect, anti-termite, effectively eliminate insect harassment, extend the service life.

(3) It is colorful and has many colors to choos. It has natural wooden texture and wooden pattern, and it can be customized the color according to customers' requirements.

(4) Strong plasticity. It can be very simple to achieve personalized modeling, and fully reflect the personality style.

(5) High environmental protection, pollution-free, and recyclable. Product does not contain benzene and formaldehyde. Recycled products greatly saves the amount of wood, so it is suitable for sustainable development of the national policy, and benefit the society.

(6) High fire resistance. Effective flame retardant, fireproof class B1, self-extinguishing in case of fire, and do not produce any toxic gas.

(7) Good processability, can be ordered, planed, sawed, drill, surface can be painted.

(8) Simple installation, convenient construction, do not need complex construction process, save installation time and cost.



SPC Flooring making machine Flooring Production Line 750kg H 0



2. SPC floor production machine process

(1) Mixing : according to the formulation, the raw materials are poured into high-speed mixer for hot mixing (hot mixing temperature: 125 , the function is to mix all kinds of materials uniformly, remove the water in the material) , then it enters into the cold mixer (to cool the material to prevent Agglomeration and discoloration, cold mixing temperature: 55.) to cool and mix materials uniformly;

(2) Extrusion: feed the mixed material into the conical twin-screw extruder for heating and extrusion, and then it enters into the T-die for molding. The formed sheet is passed through a four-roller calender. After the base material is shaped, it will be laminated with decorative film , wear-resistant layer, and then the whole piece of SPC floor will be cooed again and finally be cut into required length

(3) UV tempering: the SPC floor board will be coated with one layer of UV layer and then tempered(tempering hot water temperature: 80120; cold water temperature: 10) to make them combined well;



SPC Flooring making machine Flooring Production Line 750kg H 1

3. Machine specification:

Type of extruder Conical twin-screw extruder GWC80/156 Conical twin-screw extruder GWC92/188 Conical twin-screw extruder GWC92/188+conical twin-screw extruder GWC80/156
Structure of product Single layer Single layer Three-layer, A/B/A
Width of product 1000mm 1000mm 1000mm
Thickness of product 2mm-5mm 2mm-5mm 2mm-5mm
Output 350kg/h-400kg/h 600kg/h-750kg/h 850kg/h-1100kg/h



4.Introduce of SPC flooring extrusion line

SPC floor extrusion line is produced by conical twin-screw extruder, through three or four roll calender, laminating PVC color film, PVC wear-resistant layer and PVC substrate at one-time. The process is simple, easy to operate, the lamination is completed by heat, no glue is needed. SPC stone plastic floor, is based on high-tech development of a new type of environmental protection floor, with zero formaldehyde, mold, moisture, fire, insect prevention, simple installation and other characteristics. SPC floor material uses environmental protection formula, and it does not contain heavy metals, phthalates, formaldehyde and other harmful substances, which is in line with EN14372, en649-2011, IEC62321, gb4085-83 standards. In Europe, the United States and the asia-pacific market, it is widely popular. With its outstanding stability and durability, stone plastic floor has solved the problem of real wood floor being affected by damp, deformation and mildew, and solve the formaldehyde problem of other decoration materials. It can choose many design and color patterns, suitable for indoor decoration, hotels, hospitals, shopping malls and other public places.



SPC Flooring making machine Flooring Production Line 750kg H 2
